Self Locking Galvanized Spring Loaded Toggle Latch Shockproof With Keyhole

Product Categories
Laizhou Huiding Hardware Co., Ltd
Contact Now

Self Locking Galvanized Spring Loaded Toggle Latch Shockproof With Keyhole

  • 1
  • 2
  • 3

Brand Name : Huiding

Model Number : DK020 G

Certification : ISO9001

Place of Origin : Yantai, Shandong, China

MOQ : 100Sets

Price : USD1.03Set

Payment Terms : L/C, T/T

Supply Ability : 200000 Sets Per Month

Delivery Time : 15 work days

Product Name : Stainless Steel Spring Loaded Toggle Latch

Material : Metal, steel,stianless steel, sus201,sus304

Finish : Zinc plated, Black Oxide, galvanized,polish

Type : Spring Toggle Latch

Service : OEM

Port : Qingdao

Contact Now

DK020 Stainless Steel Metal Sring Loaded Toggle Latch With Keyhole

Product description

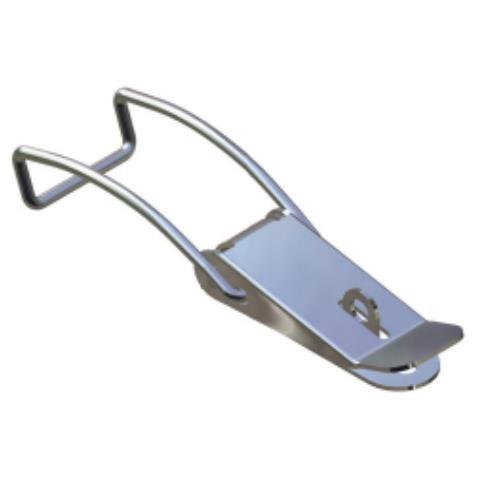

DK020 G is is an elastic shock-absorbing spring loaded toggle latch with a keyhole, which is more secure.

Self Locking Galvanized Spring Loaded Toggle Latch Shockproof With Keyhole

Self Locking Galvanized Spring Loaded Toggle Latch Shockproof With Keyhole

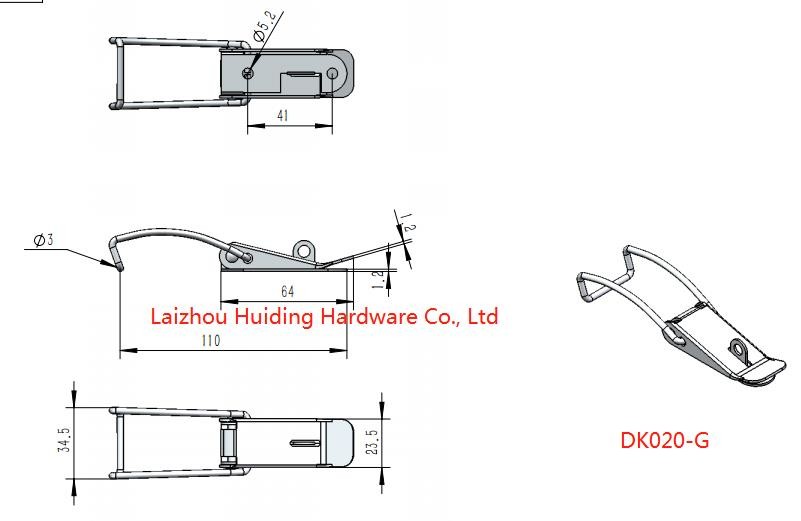

Detailed parameters

Model Material Surface Traitment Weight Dimension
DK020 Iron Nickel-plated 48g Length:113.2mm
Width:34.5mm
Thickness:1.5mm
DK020 ss201 Polished 48g Length:113.2mm
Width:34.5mm
Thickness:1.5mm
DK020 ss304 Polished 48g Length:113.2mm
Width:34.5mm
Thickness:1.5mm

Product Quality Control

1. The quality inspection of raw materials includes indicators such as steel plate hardness;
2. Regular data detection of products, such as length, width, height and weight;
3. Product bearing capacity test;
4. Salt spray test to test the corrosion resistance of products.

Precautions

1. Don’t use rain or acid to wash the surface.

2.Don’t use a polisher to polish this product.

3.Don’t change the hole spacing of the product casually to avoid unnecessary damage.

4.Don’t replace the parts of the product at will, so as not to cause damage to the product.

5.Please use it according to the load-bearing capacity of the product to avoid unnecessary losses caused by overloading.

6. If the product is to be welded, please use non-finished products for operation to avoid high temperature burning of the electroplating layer.
